先導式電磁閥

產品名稱：免費黃色視頻下載:先導式電磁閥
產品型號：RSP
產品口徑：DN10-50mm
產品壓力：1.7Mpa
產品材質：黃銅、不銹鋼
聯系電話：021-51061127
聯系傳真：021-51062214
Email：fashengfamen@126.com
聯系人：陳云非
聯系手機：18217570461
QQ：203398752
公司名：上海閥盛閥門制造有限公司
帳號：03416900040048386
開戶行：農行上海水清南路支行
售后承諾：質保一年，質量三包：包修、包換、包退。

上海閥(fa)(fa)(fa)(fa)盛(sheng)閥(fa)(fa)(fa)(fa)門制(zhi)造有限公司主(zhu)要生產先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)，可提供(gong)先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)價格(ge)，先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)說明書(shu)，先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)實(shi)物圖，先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)結構圖，先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)外形(xing)尺寸，先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)執行標準，先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)工作(zuo)原理，先(xian)(xian)(xian)(xian)(xian)(xian)導(dao)(dao)式(shi)(shi)電(dian)(dian)(dian)磁(ci)(ci)閥(fa)(fa)(fa)(fa)作(zuo)用特點。

先導式電磁閥詳細介紹：
適用介質：液體、水、氣、熱水、油、瓦斯
介質溫度：-10 ~ 80℃
動作方式：先導式
工作壓力：常閉式：0.5~13 kgf/cm²
常開式：0.5~8 kgf/cm²
閥體材質：黃銅（鍛造）
膜片式密封，膜片材質：丁腈橡膠（NBR）
線圈保護等級：塑封線圈IP65
先導式電磁閥特殊訂貨：
※如您選購氟橡膠膜片（Viton）則在訂單中注明V，其介質最高溫度可達到130℃；
※如您選購三元乙丙膠膜片（EPDM）則注明E，其介質最高溫度可達到110℃.

先導式電磁閥(fa)技術參(can)數(shu)及規格（常閉）：

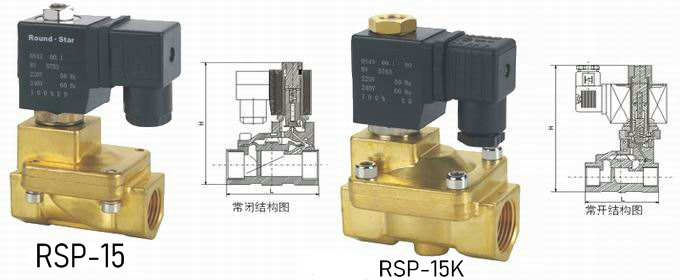

先導式電磁閥

型號		RSP-10	RSP-15	RSP-20	RSP-25	RSP-35	RSP-40	RSP-50
螺紋G		3/8"	1/2"	3/4"	1"	1¼"	1½"	2"
流量孔徑	mm	13	13	20	25	35	40	50
Cv 值		3.5	4.5	7.6	12	22	30	48
長L	mm	66	66	75	92	122	131	165
高H	mm	112	112	118	125	137	150	165
介質溫度		-10 ~80℃ （130℃）
工作壓力（壓差）	kgf/cm²	常閉 :0.5～13; 常開:0.5~8
最大耐壓力	kgf/cm²	17
額定電壓		220V AC/50HZ 17VA; 110V AC/50HZ 13VA; DC24V,11 W; DC12V 14W ; 上下浮動:±10%；其他電壓可定制
