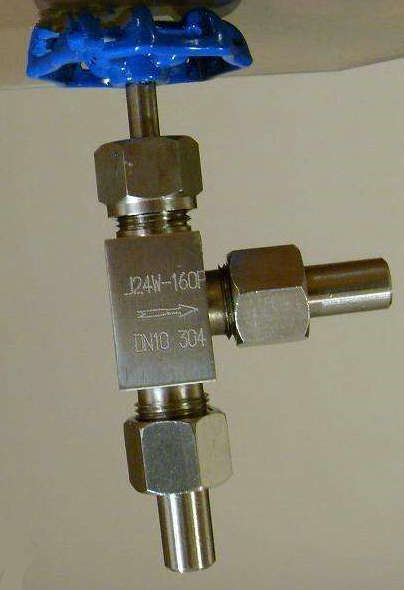

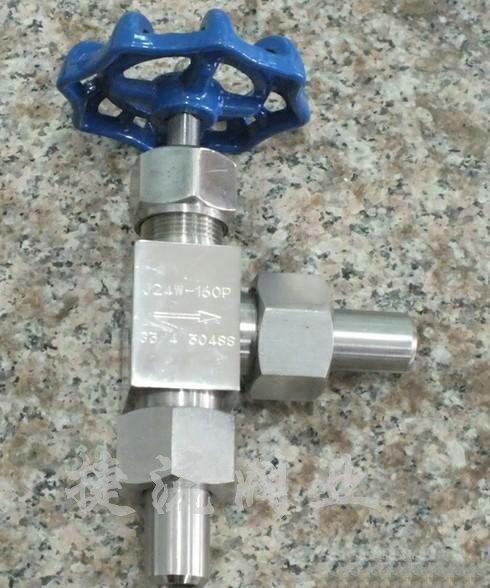

J24W外螺紋角式針型閥
- 產品名稱:免費黃色視頻下載:J24W外螺紋角式針型閥
- 產品型號:J24W
- 產品口徑:DN3-25mm
- 產品壓力:1.6-32MPa
- 產品材質:鑄鋼、不銹鋼
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上海(hai)閥(fa)(fa)(fa)盛閥(fa)(fa)(fa)門制造有限公(gong)司主(zhu)要(yao)生(sheng)產(chan)J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa),可提供(gong)J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)價格,J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)說明書,J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)實物(wu)圖(tu),J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)結構圖(tu),J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)外(wai)(wai)形尺寸,J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)執行標(biao)準,J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)工作(zuo)原理,J24W外(wai)(wai)螺(luo)(luo)紋(wen)(wen)(wen)角(jiao)式(shi)(shi)(shi)(shi)(shi)針(zhen)(zhen)型(xing)(xing)(xing)閥(fa)(fa)(fa)作(zuo)用特點。
零件名稱 | 閥體、閥蓋 | 閥桿、閥瓣 | 填料 |
J24W-160P-DN3 | 鉻鎳不銹鋼 | 鉻鎳不銹鋼 | 聚四氟乙稀、柔性石墨 |
J24W-320P-DN6 | 優質碳鋼 | 鉻鎳不銹鋼 | 聚四氟乙稀、柔性石墨 |
外螺紋角式針型閥主要性能規范:
型號 | 公稱壓力(MPa) | 試驗壓力(MPa) | 工作壓力 (MPa) | 工作溫度 (℃) | 適用介質 | ||
殼體 (MPa) | 密封 (液) | 密封 (氣) | |||||
J24W-160P-DN3 | 16.0 | 24.0 | 17.6 | 0.6 | 16.0 | P≤540℃ | 液化石油氣水、酸、蒸汽、油品等 |
J24W-320P-DN6 | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | C≤425℃ | |
外螺紋(wen)角式針型閥(fa)外形尺寸(cun):
型號 | 公稱直徑DN(mm) | 尺寸 | 重量(Kg) | |||||
L1 | Do | H | H1 | D | D1 | |||
J24W-160P-DN3 | 3 | 80 | 65 | 159 | 168 | 14 | 3 | 1.0 |
J24W-320P-DN6 | 6 | 80 | 65 | 159 | 168 | 14 | 6 | 1.0 |
