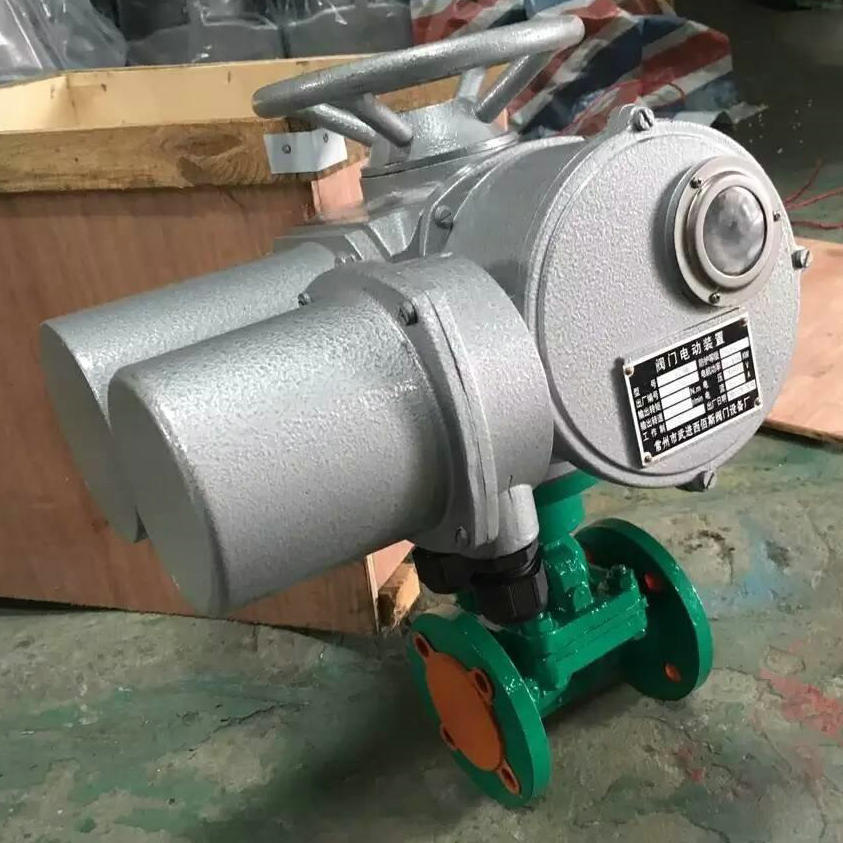

電動襯膠隔膜閥
- 產品名稱:免費黃色視頻下載:電動襯膠隔膜閥
- 產品型號:G941J
- 產品口徑:DN25-400mm
- 產品壓力:1-1.6MPa
- 產品材質:鑄鐵、鑄鋼、不銹鋼
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上(shang)海閥(fa)(fa)(fa)盛閥(fa)(fa)(fa)門制造(zao)有限公司主(zhu)要生(sheng)產電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa),可提供電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)價格,電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)說明書,電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)實物(wu)圖(tu),電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)結構圖(tu),電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)外形尺(chi)寸,電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)執(zhi)行標準,電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)工作原(yuan)理(li),電(dian)(dian)動(dong)(dong)(dong)襯(chen)(chen)(chen)膠(jiao)(jiao)(jiao)(jiao)隔(ge)(ge)(ge)(ge)膜(mo)(mo)(mo)(mo)閥(fa)(fa)(fa)作用特(te)點。
型號 | 公稱壓力 Mpa | 實驗壓力(Mpa) | 工作壓力(Mpa) | 適用溫度 | 適用介質 | |||
閥體強度 | 密封面 | |||||||
G941WJ | 0.6 | 0.9 | 0.66 | 0.6 | 0.4 | 0.25 | 小于等于80攝氏度 | 一般腐蝕性介質 |
G941WJ | 1.0 | 1.5 | 1.1 | 1.0 |
電動(dong)襯膠隔膜閥主要外形尺寸:
型號 | 公稱尺寸 DN(mm | 外形及連接尺寸mm | ||||||
L | D1 | D | Do | Z-φd | H | H1 | ||
G941WJ-6 | 25 | 145 | 85 | 115 | 120 | 4-14 | 121 | 135 |
32 | 160 | 100 | 135 | 120 | 4-18 | 132 | 150 | |
40 | 180 | 110 | 145 | 140 | 4-18 | 156 | 176 | |
50 | 210 | 125 | 160 | 140 | 4-18 | 169 | 195 | |
65 | 250 | 145 | 180 | 200 | 4-18 | 202 | 236 | |
80 | 300 | 160 | 195 | 200 | 4-18 | 216 | 256 | |
100 | 350 | 180 | 215 | 280 | 4-18 | 270 | 322 | |
125 | 400 | 210 | 245 | 320 | 8-18 | 338 | 406 | |
150 | 460 | 240 | 280 | 320 | 8-18 | 384 | 464 | |
200 | 570 | 295 | 335 | 400 | 8-23 | 518 | 638 | |
250 | 680 | 350 | 390 | 500 | 8-23 | 598 | 734 | |
300 | 790 | 400 | 440 | 560 | 12-23 | 698 | 778 | |
350 | 900 | 460 | 500 | 560 | 12-23 | 723 | 883 | |
400 | 1000 | 515 | 565 | 640 | 16-23 | 868 | 1078 | |
G941WJ-10 | 25 | 145 | 85 | 115 | 120 | 16-25 | 121 | 135 |
32 | 160 | 100 | 135 | 120 | 4-14 | 132 | 150 | |
40 | 180 | 110 | 145 | 140 | 4-18 | 156 | 176 | |
50 | 210 | 125 | 160 | 140 | 4-18 | 169 | 195 | |
65 | 250 | 145 | 180 | 200 | 4-18 | 202 | 236 | |
80 | 300 | 160 | 195 | 200 | 4-18 | 216 | 256 | |
100 | 350 | 180 | 215 | 280 | 8-18 | 270 | 322 | |
125 | 400 | 210 | 245 | 320 | 8-18 | 338 | 406 | |
150 | 460 | 240 | 280 | 320 | 8-23 | 384 | 464 |
