船用三通鑄鐵填料旋塞閥性能規范Technical Data

公稱壓力Nominal Pressure(MPa) 公稱通徑Nominal Diameter(mm) 適用介質Applicable Medium 0.6 20 - 80 海水、淡水、滑油、燃油 Sea water. Fresh water. Lubricanting oil, Fuel oil

船用三通鑄鐵填料旋塞閥主要零部件材質Materials of Main Parts

零件名稱Parts Name 材料Material 　 名稱Name 牌號Marks 閥體Body 灰鑄鐵、鑄錫青銅Gray Cast lron/Cast Tin Bronze HT200、ZCuSn102n2或ZCuSn5Pb52n5 塞芯Core 鑄錫青銅Cast Tin Bronze ZCuSn102n2或ZCuSn5Pb52n5

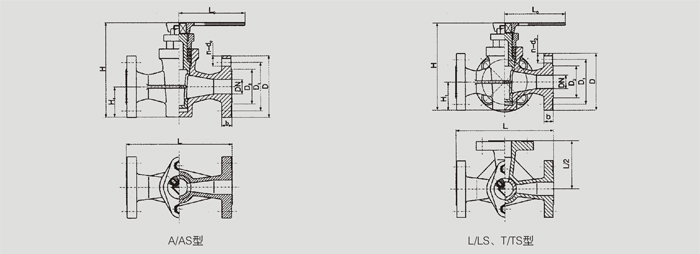

船用三通鑄鐵填料旋塞閥A型、L型、T型基本尺寸Dimensions

公稱通徑 結構尺寸 Structure Dimension 壁厚 法蘭Flange 螺栓Bolt 手柄 Handle 參考重量Weight(kg) DN(mm) L H≈ Hi Thickness 6 D Di D2 do b n個 Th L0 A型 L型 T型 20 145 141 42 7 95 68 48 13 14 4 M12 125 3.01 3.85 3.79 25 155 151 43 7 105 73 56 13 14 4 M12 140 3.84 4.8 4.8 32 165 170 50 7 115 83 64 15 15 6 M14 160 4.7 5.7 5.6 40 190 193 57 7 125 93 74 15 16 6 M14 180 6.6 8.4 8.3 50 205 245 67 7 135 103 84 15 16 6 M14 230 10.2 12 11.8 65 225 286 81 8 155 123 104 15 15 6 M14 250 13.4 16.7 16.3 80 245 328 100 8 170 138 118 15 15 8 M14 320 19.7 21.8 21.3

船用三通鑄鐵填料旋塞閥AS鷲、LS型、TS型基本尺寸Dimensions

公稱通徑 結構尺寸 Structure Dimension 壁厚 法蘭Flange 螺栓Bolt 手柄 Handle 參考重量Weight(kg) DN(mm) L H≈ Hi Thickness 6 D Di D2 do b n個 Th L0 AS型 LS型 TS型 20 150 141 42 7 90 65 50 1 1 14 4 M10 120 3 1 3 9 3 8 25 160 151 43 7 100 75 60 1 1 14 4 M10 140 4 9 4 9 4 8 32 180 170 50 7 120 90 70 14 16 4 M12 160 5 8 5 8 5 7 40 200 193 57 7 130 100 80 14 16 4 M12 180 9 1 9 1 9 0 50 230 245 67 7 140 1 10 90 14 16 4 M12 230 12 4 12 4 12 2 65 290 286 81 8 160 130 110 14 16 4 M12 250 17 7 17 7 17 3 80 310 328 100 8 190 150 128 18 18 4 M16 320 23 9 23 9 23 4
