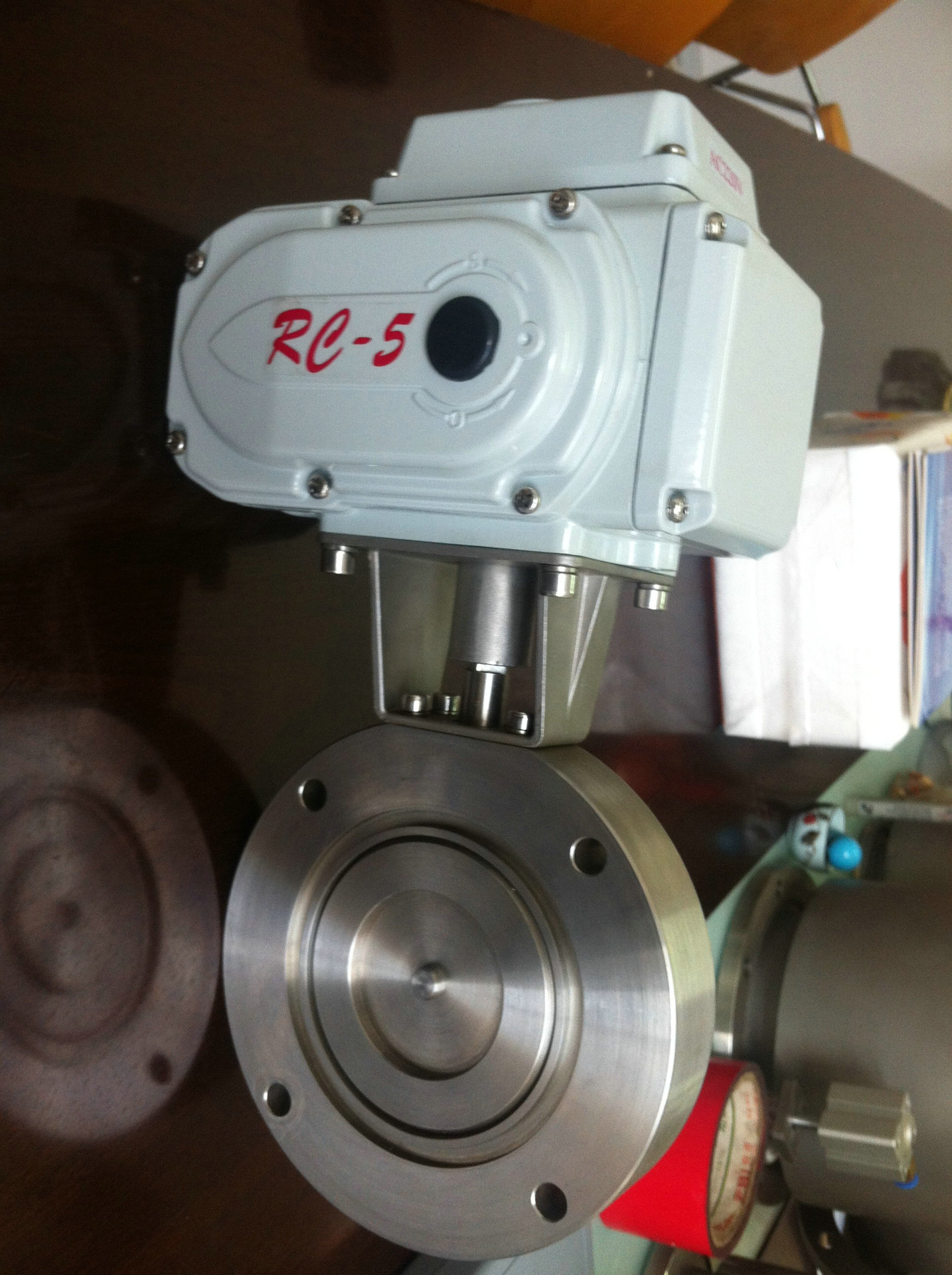

GID-A型電動高真空蝶閥

產品名稱：免費黃色視頻下載:GID-A型電動高真空蝶閥
產品型號：GID-A型
產品口徑：DN50-400mm
產品壓力：負壓
產品材質：不銹鋼
聯系電話：021-51061127
聯系傳真：021-51062214
Email：fashengfamen@126.com
聯系人：陳云非
聯系手機：18217570461
QQ：203398752
公司名：上海閥盛閥門制造有限公司
帳號：03416900040048386
開戶行：農行上海水清南路支行
售后承諾：質保一年，質量三包：包修、包換、包退。

上(shang)海閥盛閥門(men)制造有限公司(si)主要生產GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥，可提供GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥價(jia)格，GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥說明書，GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥實(shi)物圖，GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥結構圖，GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥外形尺寸，GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥執行標(biao)準，GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥工作原(yuan)理(li)，GID-A型(xing)電(dian)(dian)(dian)(dian)動(dong)(dong)(dong)(dong)(dong)高真(zhen)(zhen)空(kong)(kong)蝶(die)(die)閥作用特點(dian)。

GID-A型電動高真空蝶閥采用回轉型電動、電子調節式閥門驅動裝置，可以通過外接電源的切換(用手動轉位開關或電腦控制)或外部輸入信號，來實現閥門開、關或中間位置的控制，從而達到接通或切斷真空管路中氣流的目的。閥門的閥板采用夾緊結構，把閥板的密封圈夾緊，除了能用在真空狀態下，也能在低壓狀態下使用。適用于工作介質為空氣和非腐蝕性氣體。

GID-A型電動高真空蝶閥主要技術性能

適用范圍(Pa)	2x10⁵～1.3x10^-5
閥門漏率(Pa.L/S)	≤1.3x10^-6
開閉時間(S)	DN≤63 20；80≤DN≤200 30； DN≥250 48
介質溫度（℃）	-25～+80(密封材料為丁腈橡膠) -30～+150(密封材料為氟橡膠)
法蘭標準	GB/T6070
安裝位置	任意
控制電路	標準出廠：AC220V/50Hz開關型特殊指定：AC380V；DC24V開關型 4～20mA DC
信號反饋	標準出廠：帶無源觸點型特殊指定：4～20mA DC調節型

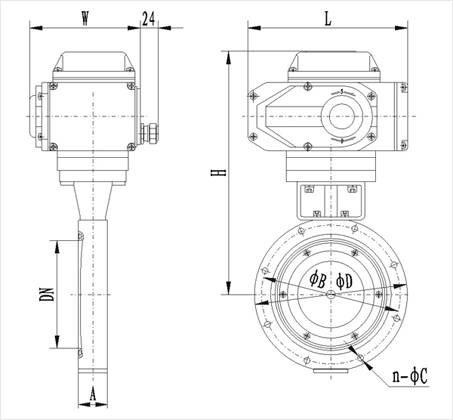

GID-A型電動高真空蝶閥連接及外形尺寸

型號	通徑(DN)	ΦD	ΦB	H	A	L	W	n-ΦC
GID-50A	50	110	90	218	26	160	113	4-Φ9
GID-63A	63	130	110	229	32	160	113	4-Φ9
GID-80A	80	145	125	272		196	121	8-Φ9
GID-100A	100	165	145	282				8-Φ12
GID-125A	125	200	175	300	35
GID-150A	150	225	200	369	35	255	158
GID-200A	200	285	260	399	45			12-Φ11
GID-250A	250	335	310	427	50			12-Φ11
GID-300A	300	425	395	471	55			12-Φ14
GID-400A	400	510	480	546	60	310	207	16-Φ14
