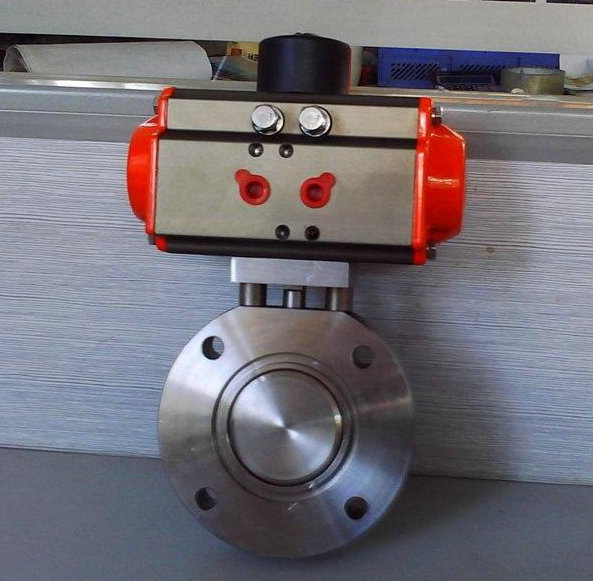

GIQ型氣動高真空蝶閥

產品名稱：免費黃色視頻下載:GIQ型氣動高真空蝶閥
產品型號：GIQ型
產品口徑：DN40-400mm
產品壓力：負壓
產品材質：不銹鋼
聯系電話：021-51061127
聯系傳真：021-51062214
Email：fashengfamen@126.com
聯系人：陳云非
聯系手機：18217570461
QQ：203398752
公司名：上海閥盛閥門制造有限公司
帳號：03416900040048386
開戶行：農行上海水清南路支行
售后承諾：質保一年，質量三包：包修、包換、包退。

上海閥(fa)(fa)(fa)盛閥(fa)(fa)(fa)門制造有限公(gong)司主要(yao)生(sheng)產GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)，可提(ti)供GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)價格(ge)，GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)說明(ming)書，GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)實物(wu)圖，GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)結構圖，GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)外形尺寸，GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)執行(xing)標準，GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)工作(zuo)原理，GIQ型(xing)(xing)氣(qi)(qi)(qi)動(dong)(dong)(dong)(dong)(dong)高(gao)(gao)(gao)真(zhen)(zhen)空(kong)(kong)蝶(die)閥(fa)(fa)(fa)作(zuo)用特點。

GIQ型氣動高真空蝶閥適用于高真空系統中用來接通或截止氣流之用。該閥以壓縮空氣為動力，通過電磁換向閥改變氣路方向，執行氣缸推動，使固定在轉動軸上的閥板旋轉90°實現閥門的開啟和關閉。適用于工作介質為空氣和非腐蝕性氣體。

GIQ型氣動高真空蝶閥主要技術性能

適用范圍(Pa)	10⁵～1.3x10^-5
閥門漏率(Pa.L/S)	≤1.3x10^-6
介質溫度（℃）	-25～+80(密封材料為丁腈橡膠) -30～+150(密封材料為氟橡膠)
氣源壓力（MPa）	0.4～0.6
法蘭標準	JB919
安裝位置	任意
電源電壓	標準出廠：AC220V/50Hz 特殊指定：AC110V；DC24V；DC12V等
信號反饋	標準出廠：不帶反饋信號特殊指定：磁性開關DV/AC5～240V

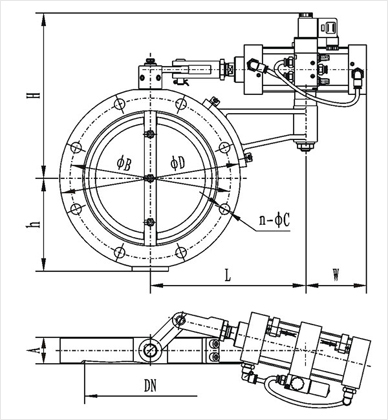

GIQ型氣動高真空蝶閥連接及外形尺寸

型號	通徑(DN)	ΦD	ΦB	H	A	L	W	n-ΦC
GIQ-40	40	85	70	1148	22	160	62	4-Φ7
GIQ-50	50	110	90	161	22	160	62	4-Φ9
GIQ-63	63	130	110	171	26	180	81
GIQ-80	80	145	125	178	30
GIQ-100	100	170	145	192	30			4-Φ12
GIQ-125	125	195	170	209	35	207	86	4-Φ12
GIQ-150	150	220	195	220		207	86	8-Φ12
GIQ-200	200	275	250	252	40	236	100
GIQ-250	250	330	300	283	45	236	100
GIQ-300	300	380	350	329	55	280	118	8-Φ14
GIQ-400	400	500	465	389	60	303	136	8-Φ18
