真空擋(dang)板閥(fa)當前位置:首頁 > 產品中心 > 切斷閥 > 真空擋板閥
  • GDQ-JS三通式氣動高真空擋板閥

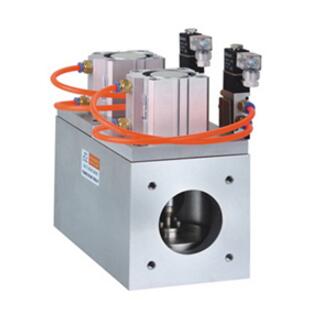

GDQ-JS三通式氣動高真空擋板閥

  • 產品名稱:免費黃色視頻下載:GDQ-JS三通式氣動高真空擋板閥
  • 產品型號:GDQ-JS
  • 產品口徑:DN50-63mm
  • 產品壓力:負壓
  • 產品材質:碳鋼,不銹鋼
  • 聯系電話:021-51061127
  • 聯系傳真:021-51062214
  • Email:fashengfamen@126.com
  • 聯系人:陳云非
  • 聯系手機:18217570461
  • QQ:203398752
  • 公司名:上海閥盛閥門制造有限公司
  • 帳號:03416900040048386
  • 開戶行:農行上海水清南路支行
  • 售后承諾:質保一年,質量三包:包修、包換、包退。

上海(hai)閥(fa)盛閥(fa)門(men)制造有限(xian)公(gong)司主要生(sheng)產GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa),可提供GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)價格,GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)說明(ming)書,GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)實物(wu)圖,GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)結(jie)構圖,GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)外形(xing)尺寸,GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)執(zhi)行標(biao)準,GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)工(gong)作(zuo)原理,GDQ-JS三(san)(san)(san)通(tong)(tong)式氣(qi)(qi)(qi)動(dong)(dong)高(gao)真(zhen)(zhen)(zhen)空(kong)(kong)擋(dang)板(ban)(ban)閥(fa)作(zuo)用特點。

GQ-JS三通式氣動高真空擋板閥是以壓縮空氣為動力,通過控制氣動元件來改變氣路方向,雙路接口,氣缸驅動使擋板閥作啟閉運動,用于接通或切斷真空管路中的氣流。適于工作介質為空氣或非腐蝕性氣體。
GDQ-JS三通式氣動高真空擋板閥主要技術性能:
適用范圍(Pa)
105~1.3x10-4
閥門漏率(Pa.L/S)
≤1.3x10-5
介質溫度(℃)
-25~+80(密封材料為腈橡膠)
-30~+150(密封材料為氟橡膠)
氣源壓力(MPa)
0.4~0.8
安裝位置
任意
電源電壓
標準出廠:AC220V/50Hz
特殊指定:AC110V;DC24;DC24V等
信號反饋
標準出廠:不帶反饋信號
特殊指定:磁性開關DC/AC5~240V
法蘭標準
GB/T6070

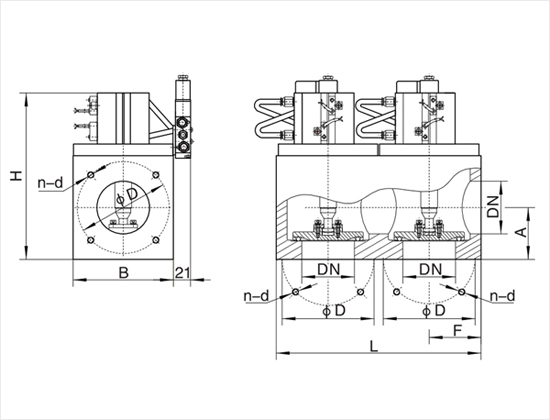

GDQ-JS三通式氣動高真空擋板閥連接及外形尺寸:
型號
通徑(DN)
ΦD
ΦB
H
B
A/F
n/d
GDQ-JS50
50
90
200
199
100
55/50
4-M8
GDQ-JS63
63
110
245
199
120
62/62
4-M8
