DJ64F-40P低溫角式截止閥(BW)
- 產品名稱:免費黃色視頻下載:DJ64F-40P低溫角式截止閥(BW)
- 產品型號:DJ64F
- 產品口徑:DN10-100mm
- 產品壓力:4Mpa
- 產品材質:不銹鋼
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上海閥(fa)(fa)盛閥(fa)(fa)門制(zhi)造有(you)限公司主要生產DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW),可提供DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)價格,DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)說明書,DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)實物圖,DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)結構(gou)圖,DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)外形尺寸,DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)執行標準,DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)工作原(yuan)理,DJ64F-40P低(di)(di)溫(wen)(wen)角(jiao)(jiao)式(shi)(shi)截(jie)(jie)(jie)止(zhi)閥(fa)(fa)(BW)作用特點。
DJ64F-40P低溫角式截止閥(BW)產品規范
公稱壓力:4.0MPa
公稱通徑:10mm~100mm
適用介質:LO2、LN2、LAr等
適用溫度:-196~+80℃
連接方式:承插焊
介質流向:由閥瓣下面向上流
DJ64F-40P低溫角式截止閥(BW)主要零部件材料
閥體、閥蓋:不銹鋼
閥瓣、閥桿:不銹鋼
填料:PTFE
閥瓣密封圈:PTFE或PCTFE

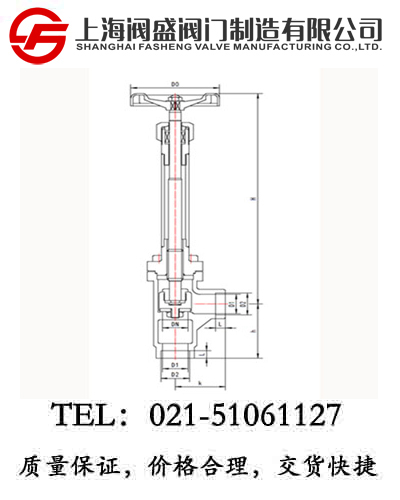

產品型號 | DJ64F-40P低溫角式截止閥 | 重量 (kg) | ||||||||
產品代號 | 通徑 DN(mm) | 尺 寸(mm) | ||||||||
k | h | H1 | H2 | L | D1 | D2 | D0 | |||
433K10AB2A3 | 10 | 35 | 20 | 268 | 260 | 8 | 10 | 14.5 | 65 | 1.4 |
433K15AB2A3 | 15 | 40 | 25 | 268 | 260 | 8 | 15 | 18.5 | 65 | 1.6 |
433K20AB2A3 | 20 | 45 | 30 | 332 | 320 | 8 | 20 | 25.5 | 100 | 2.3 |
433K25AB2A3 | 25 | 50 | 35 | 332 | 320 | 8 | 25 | 32.5 | 100 | 2.5 |
433K32AB2A3 | 32 | 55 | 40 | 400 | 380 | 10 | 32 | 38.5 | 120 | 4.9 |
433K40AB2A3 | 40 | 60 | 50 | 400 | 380 | 10 | 40 | 48.5 | 120 | 5.1 |
433K50AB2A3 | 50 | 80 | 60 | 493 | 470 | 10 | 50 | 57.5 | 160 | 10.4 |
433K65AB2A3 | 65 | 90 | 70 | 493 | 470 | 10 | 65 | 76.5 | 160 | 13.5 |
433K80AB2A3 | 80 | 100 | 80 | 538 | 500 | 15 | 80 | 89.5 | 200 | 23.6 |
433K100AB2A3 | 100 | 110 | 90 | 550 | 510 | 15 | 100 | 108.5 | 240 | 31.1 |
