DJ661F-25P低溫氣動緊急切斷閥
- 產品名稱:免費黃色視頻下載:DJ661F-25P低溫氣動緊急切斷閥
- 產品型號:DJ661F
- 產品口徑:DN20-200mm
- 產品壓力:2.5Mpa
- 產品材質:不銹鋼
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上(shang)海(hai)閥(fa)(fa)盛閥(fa)(fa)門制造有限公司主(zhu)要(yao)生(sheng)產DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa),可(ke)提供DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)價(jia)格,DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)說明書(shu),DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)實物圖,DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)結構圖,DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)外形(xing)尺寸,DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)執(zhi)行標準,DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)工作原(yuan)理,DJ661F-25P低(di)(di)(di)(di)溫(wen)氣(qi)動(dong)(dong)緊(jin)(jin)(jin)(jin)急(ji)(ji)切(qie)(qie)斷(duan)閥(fa)(fa)作用特(te)點
DJ661F-25P低溫氣動緊急切斷閥產品規范
公稱壓力:2.5MPa
公稱通徑:20mm~200mm
適用介質:LO2、LN2、LAr、LNG、LC2H4等
適用溫度:-196~+75℃
連接方式:承插焊
介質流向:由閥瓣上面向下流
氣源壓力:0.3~0.6MPa
緊急切斷溫度:70±5℃
DJ661F-25P低溫氣動緊急切斷閥主要零部件材料
閥體、閥蓋、閥瓣、閥桿:不銹鋼
填料:PTFE
密封圈:PTFE或PCTFE
氣缸、支架:鑄鋁

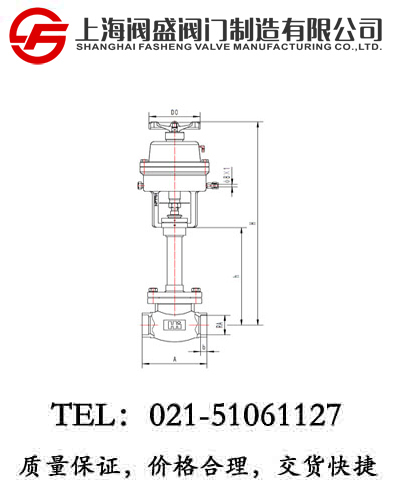

產品型號 | DJ661F-25P低溫緊急切斷閥 | 重量 (kg) | ||||||
產品代號 | 通徑 DN(mm) | 尺寸(mm) | ||||||
A | H | h | D0 | RA | b | |||
333E20AB2A3P | 20 | 90 | 400 | 200 | 100 | 25.5 | 8 | 6 |
333E25AB2A3P | 25 | 100 | 400 | 200 | 100 | 32.5 | 8 | 6.2 |
333E32AB2A3P | 32 | 110 | 468 | 204 | 120 | 38.5 | 10 | 10.5 |
333E40AB2A3P | 40 | 120 | 523 | 230 | 120 | 45.5 | 10 | 10.7 |
333E50AB2A3P | 50 | 150 | 523 | 230 | 120 | 57.5 | 15 | 17.8 |
333E65AB2A3P | 65 | 180 | 651 | 250 | 120 | 76.5 | 15 | 20.5 |
333E80AB2A3P | 80 | 210 | 736 | 320 | 160 | 89.5 | 15 | 32.1 |
333E100AB2A3P | 100 | 250 | 736 | 320 | 160 | 108.5 | 20 | 50.4 |
333E125AB2A3P | 125 | 300 | 1020 | 470 | 300 | 133.5 | 25 | 68.6 |
333E150AB2A3P | 150 | 350 | 1050 | 500 | 300 | 159.5 | 25 | 95.4 |
333E200AB2A3P | 200 | 430 | 1150 | 600 | 300 | 219.5 | 25 | 151.1 |
