DJ44F-6T低溫角式截止閥
- 產品名稱:免費黃色視頻下載:DJ44F-6T低溫角式截止閥
- 產品型號:DJ44F
- 產品口徑:DN25-350mm
- 產品壓力:0.6Mpa
- 產品材質:銅合金
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上海(hai)閥盛閥門制(zhi)造(zao)有限公(gong)司主要(yao)生(sheng)產DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥,可提供DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥價格,DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥說明書,DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥實物(wu)圖(tu),DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥結構圖(tu),DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥外(wai)形尺寸(cun),DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥執(zhi)行標準,DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥工作原(yuan)理,DJ44F-6T低(di)(di)溫(wen)角(jiao)式截(jie)(jie)止閥作用特點。
DJ44F-6T低溫角式截止閥產品規范
公稱壓力:0.6MPa
公稱通徑:25mm~350mm
適用介質:LO2、LN2、LAr等
適用溫度:-196~+80℃
連接方式:法蘭
介質流向:由閥瓣下面向上流
DJ44F-6T低溫角式截止閥主要零部件材料
閥體、閥蓋、閥瓣:硅黃銅
閥桿:不銹鋼
填料:PTFE
閥瓣密封圈:PTFE或PCTFE

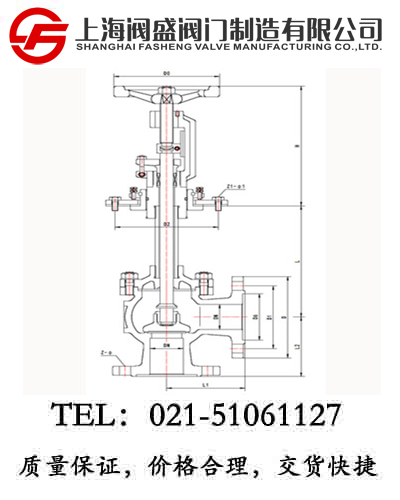

產品型號 | DJ44F-6T低溫角式截止閥 | 重量 (kg) | ||||||||||||
產品代號 | 通徑 DN(mm) | 尺寸(mm) | ||||||||||||
L | H1 | H2 | D | D1 | D2 | D6 | L1 | L2 | Z1-d1 | Z-d | D0 | |||
122K25GB2A3 | 25 | 250-600 | 269 | 244 | 100 | 75 | 142 | 53 | 80 | 62 | 4-10 | 4-12 | 120 | 11.5 |
122K40GB2A3 | 40 | 250-800 | 292 | 272 | 130 | 100 | 160 | 76 | 90 | 90 | 6-14 | 4-14 | 160 | 21.7 |
122K50GB2A3 | 50 | 300-800 | 306 | 282 | 140 | 110 | 165 | 86 | 100 | 100 | 6-14 | 6-14 | 160 | 28.8 |
122K65GB2A3 | 65 | 300-1000 | 342 | 305 | 160 | 130 | 185 | 106 | 115 | 115 | 6-14 | 6-14 | 200 | 34.3 |
122K80GB2A3 | 80 | 300-1000 | 350 | 310 | 185 | 150 | 200 | 121 | 130 | 130 | 6-14 | 6-14 | 200 | 46.5 |
122K100GB2A3 | 100 | 300-1000 | 385 | 340 | 205 | 170 | 225 | 142 | 140 | 140 | 8-14 | 8-18 | 280 | 58.7 |
122K125GB2A3 | 125 | 300-1000 | 390 | 350 | 235 | 200 | 250 | 170 | 145 | 145 | 8-14 | 8-18 | 280 | 69.8 |
122K150GB2A3 | 150 | 300-1000 | 420 | 360 | 260 | 225 | 290 | 194 | 165 | 165 | 8-14 | 10-18 | 320 | 99.2 |
122K200GB2A3 | 200 | 500-1200 | 439 | 374 | 315 | 280 | 340 | 248 | 205 | 205 | 12-14 | 12-18 | 360 | 120 |
122K250GB2A3 | 250 | 500-1200 | 525 | 440 | 370 | 335 | 435 | 300 | 250 | 250 | 12-14 | 16-18 | 400 | 207 |
122K300GB2A3 | 300 | 500-1200 | 535 | 440 | 435 | 395 | 520 | 354 | 270 | 270 | 16-18 | 16-18 | 450 | 252 |
122K350GB2A3 | 350 | 500-1200 | 618 | 498 | 485 | 445 | 550 | 404 | 300 | 300 | 12-18 | 12-22 | 500 | 478 |
